dolce gusto cartoner packaging machine

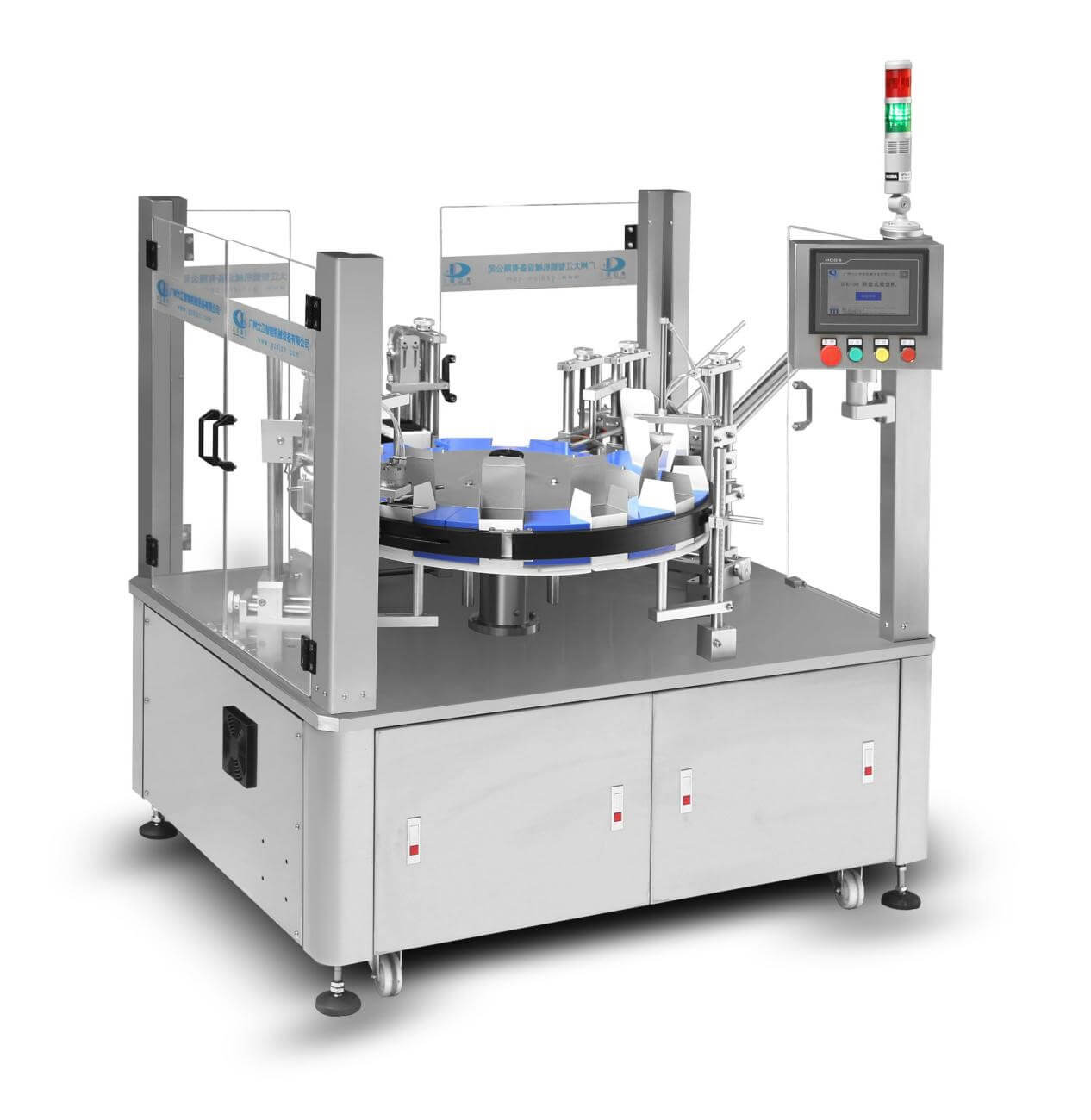

  • The AF-B10 Dolce Gusto Cartoner Packaging machine is a compact and cost-effective solution for packaging a diverse range of products, including coffee capsules and electronic components, into variously sized boxes.
  • It features a robust 304 stainless steel construction and an advanced PLC Control System with a 5.7” touch screen for intuitive operation and quick adjustments to packing parameters.
  • The machine efficiently executes a multi-step packing process that can be enhanced with a hot melt glue system for secure box sealing.
FeatureDescription
Machine TypeAF-B10 Dolce Gusto Cartoner Packaging machine
ApplicationPackaging of coffee capsules, car bulbs, LED bulbs, switch sockets, filters, snacks, and more
ConstructionDurable 304 stainless steel case
Control SystemAdvanced PLC with a 5.7” colorful touch screen control panel
Packaging ProcessAutomated sequence including box folding, flattening, product insertion, and sealing

View more

AF-B10 Dolce Gusto Cartoner Packaging machine suits to pack coffee capsules like Dolce Gusto, Nespresso, k cups, lavazza capsules, caffitaly, etc, into boxes with count functions.

The equipment has a wide range of uses, also suitable for car bulbs, LED bulbs, switch sockets, filters, bulk snacks, 502 glue, oral liquid without support, lined cosmetics, pharmaceutical industry, food industry, cosmetics industry, electronic industry paper Box vertical automatic forming packaging.

SPECIFICATIONS

Model No.AF-B10
Production speed:20-50 boxes per min
Paper box’s largest size230 x 120x 120mm(can be customized)
Paper box’s smallest size60 x 20 x 20 mm(can be customized)
Paper quality of carton250-350g/m3
Motor horsepower1.5KW/H
Power supply220V 50/60HZ single phase
Machine noise≤80dB
Gas source0.5-0.8 Mpa
Compress air consumption260L/min
Machine measurement:L 1100 x  W 1500 x  H 1700 mm
Machine weight450Kg

FEATURES

  • It is specially designed to pack small quantities of multi-size boxes.
  • With low cost and only require small area. It is suitable for various sizes of boxes. The machine is a vertical type with multiple functions and requires a short time to change mold.
  • 304 stainless steel case
  • Advanced PLC Control System Combined with a 5.7” Colorful Touch Screen Control Panel, can easily set and change the packing parameters.

FUNCTIONS

Packing Process:

  1. Push box into star wheel.
  2. Fold box lower small flap.
  3. Press both lower big flaps.
  4. Flatten both big flaps.
  5. Product fall into box.
  6. Fold box upper small flap.
  7. Press both upper big flaps.
  8. Flatten both big flaps.
  9. Product push out.

You can also use hot melt glue to close the boxes

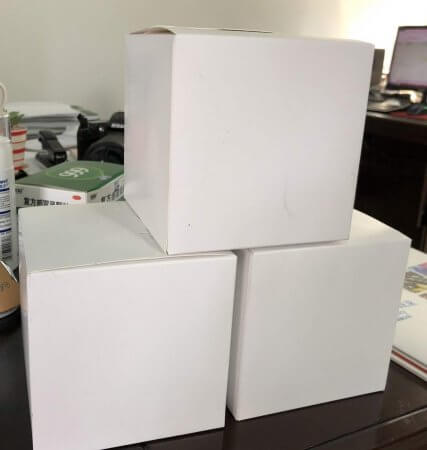

SAMPLES MADE BY THIS MACHINE

2 years warranty

Customize service available

In-person and Online Training

Videos/books manual

USA local technical support
