AF-H2/H4 Lavazza blue filling sealing machine is the solution to fill coffee in Lavazza blue and Lavazza a modo mio capsules, close and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
SPECIFICATIONS
| Model | AF-H2 | AF-H4 |
| Filling head | 2 heads | 4 heads |
| Filling Accuracy | ±0.2g | ±0.2g |
| Machine speed | 3000-3600 cph | 6000-7200 cph |
| Voltage | 220V/60HZ/3PH | 220V/60HZ/3PH |
| Machine size | 4800*3000*2000mm | |
| Machine weight | 2000KGS | 2500 KGS |
| Note | This is a custom-build machine, so each machine specifications will have different |
FEATURES
- Compact structure, convenient use and maintenance.
- It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
- Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
- Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
- All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
- Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
- Machine is very easy to use and maintain.
FUNCTIONS
☆ Automatic feed the empty lavazza capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules
OPTIONAL FUNCTIONS
☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

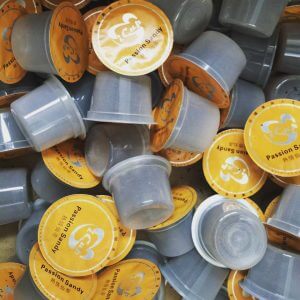

SAMPLES MADE BY THIS MACHINE

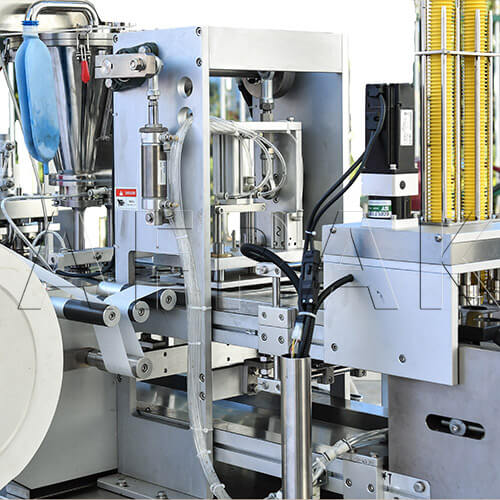

Machine Pictures
