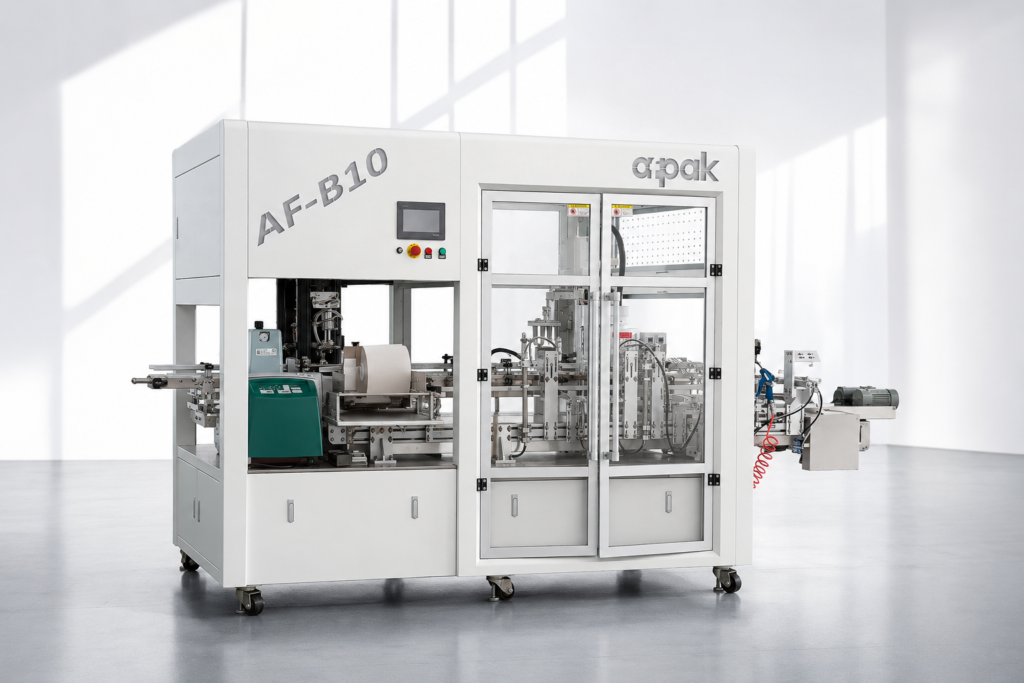

The AFPAK’s B10 K Cup cartoner packaging machine is a newly developed, reliable solution designed for small capacities K-cup packaging needs. This versatile machine can quickly adjust to produce boxes containing 12–18-24 counts K-Cups, with a production rate of 5–10 boxes per minute. It offers robust features, including box opening, automatic cup sorting, cup placement, and hot-melt glue sealing. Built with high-quality electrical components from globally recognized brands (Schneider, Omron, Autonics, etc..), it ensures exceptional performance and long-lasting durability. The machine is user-friendly and easy to maintain, requiring just 30 minutes to fully master its operation and maintenance. Simple, dependable, and efficient, the B10 will significantly reduce your costs and time while producing high-quality, consistent K-Cup products.
Features:

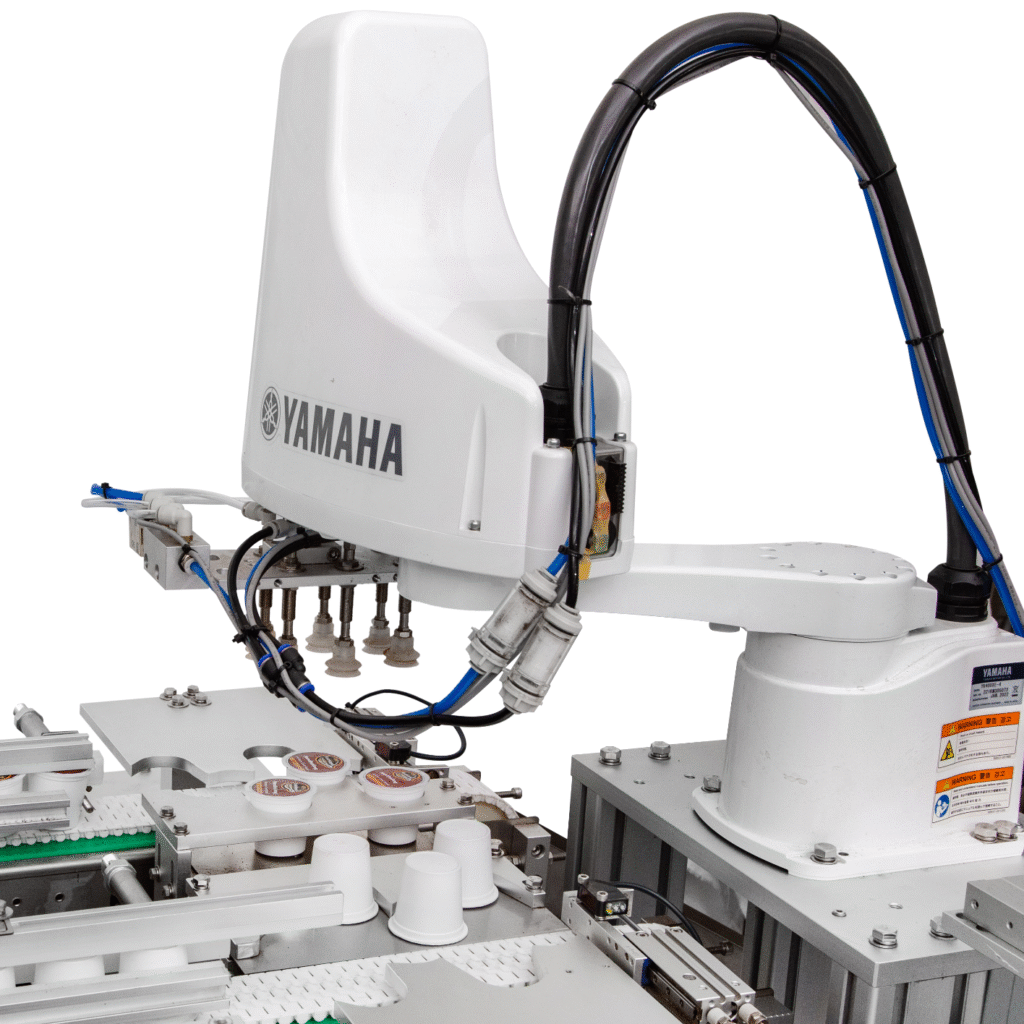

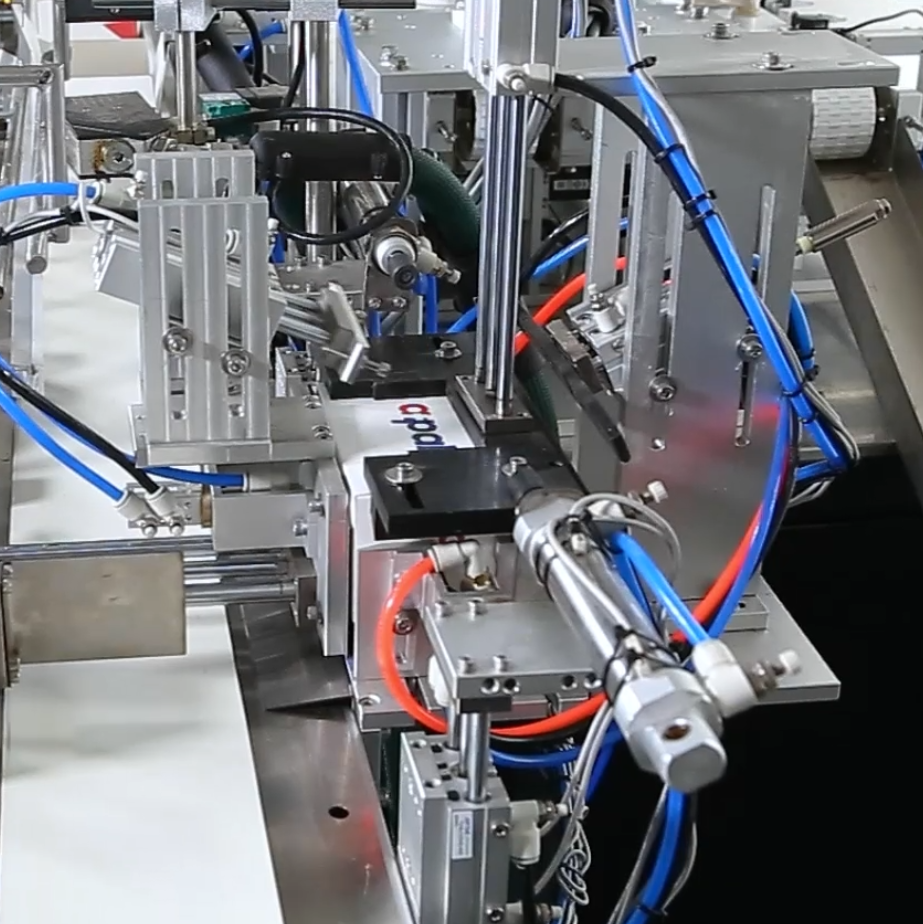

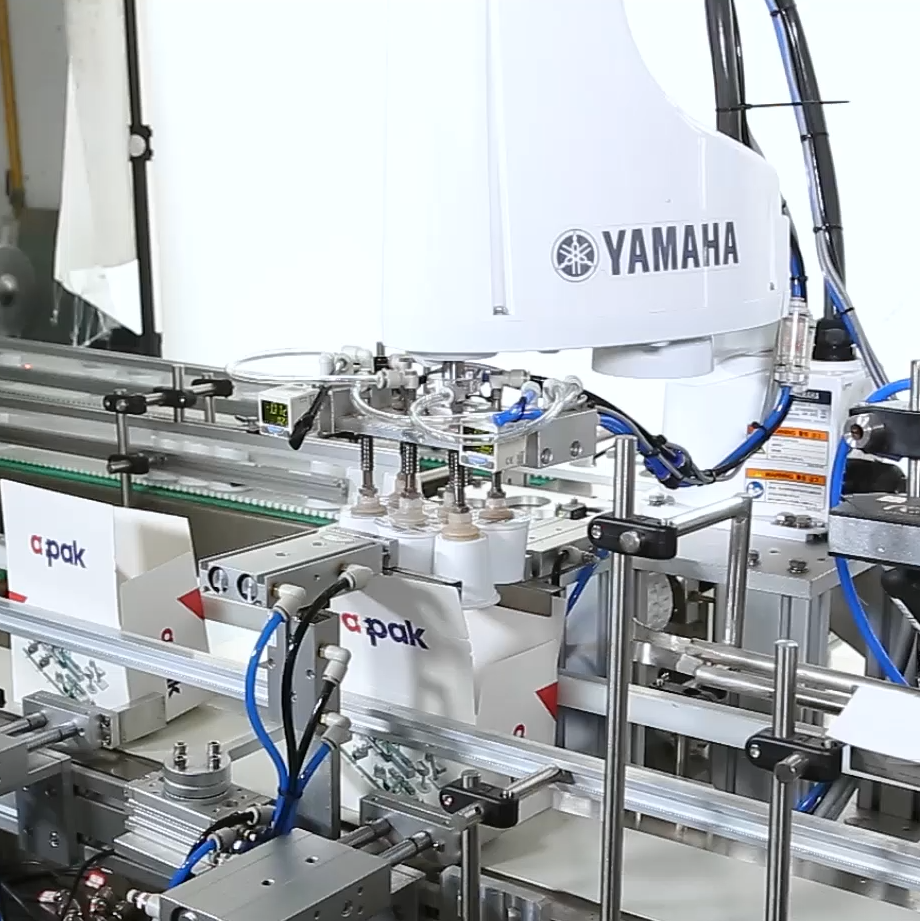

- Versatile Functionality: This all-in-one machine handles automatic box opening, cup sorting, cup placement, box sealing, and hot-melt glue application, streamlining the entire packaging process.
- Outstanding Performance: Designed for a production rate of 50–150 cups per minute, it delivers a stable and highly efficient solution.
- Safe and Reliable: Equipped with multiple photoelectric safety sensors to ensure consistent production quality and maximum operator safety.
- Highly Customizable: Easily expandable with tailored features like conveyor systems, coding systems, or weight detection systems to meet your specific needs.
- Compact and Mobile: Its space-saving design includes wheels for easy movement and secure placement wherever you need it.
- Single-Operator Efficiency: Requires only one person to manage daily production, simplifying operations.
- User-Friendly English Interface: All settings and controls are in English, making it accessible for all manufacturers, with customizable language options available upon request.
- Broad Compatibility: With simple adjustments, the machine can accommodate various box sizes, offering flexible production capabilities.
Specifications:
| Model No. | AF-B10 |
| Production speed: | 5-15 box per min |
| Paper box’s largest size | 250 x 150x 150mm |
| Paper box’s smallest size | 60 x 20 x 20 mm |
| Paper quality of carton | 250-400 g/m3 |
| Motor horsepower | 1/4HP 15:1 1.5KW/H |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 260L/min |
| Machine measurement: | L 2800 x W 800 x H 1700 mm |
| Machine weight | 450Kg |
FAQ about B10 K cup Cartoner Packaging Machine
Does this machine connect to my K-cup filling machine?
Absolutely. The B10 is designed to integrate seamlessly with AFPAK machines like the RN1S or H4, but it can also be customized to connect with other brands of filling equipment via a conveyor system.
Can the B10 machine handle different box sizes (12 and 24 count)?
Yes, the B10 is adjustable. By changing the mold and adjusting the settings, it can switch between 12-count, 18-count, and 24-count K-cup boxes. Changeover typically takes about 30-45 minutes.
What type of glue does the cartoner use?
It uses an industrial Hot Melt Glue system (typically Nordson or Robatech compatible), which provides a strong, clean, and quick-setting seal suitable for retail packaging.
About AFPAK

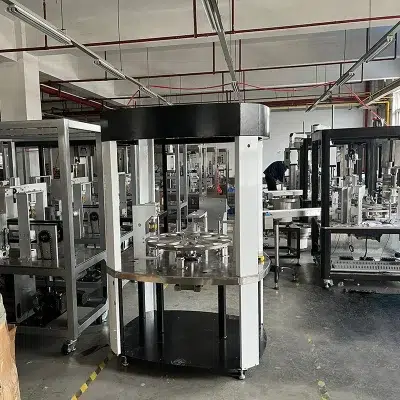

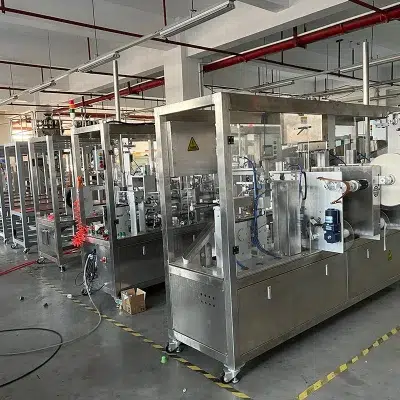

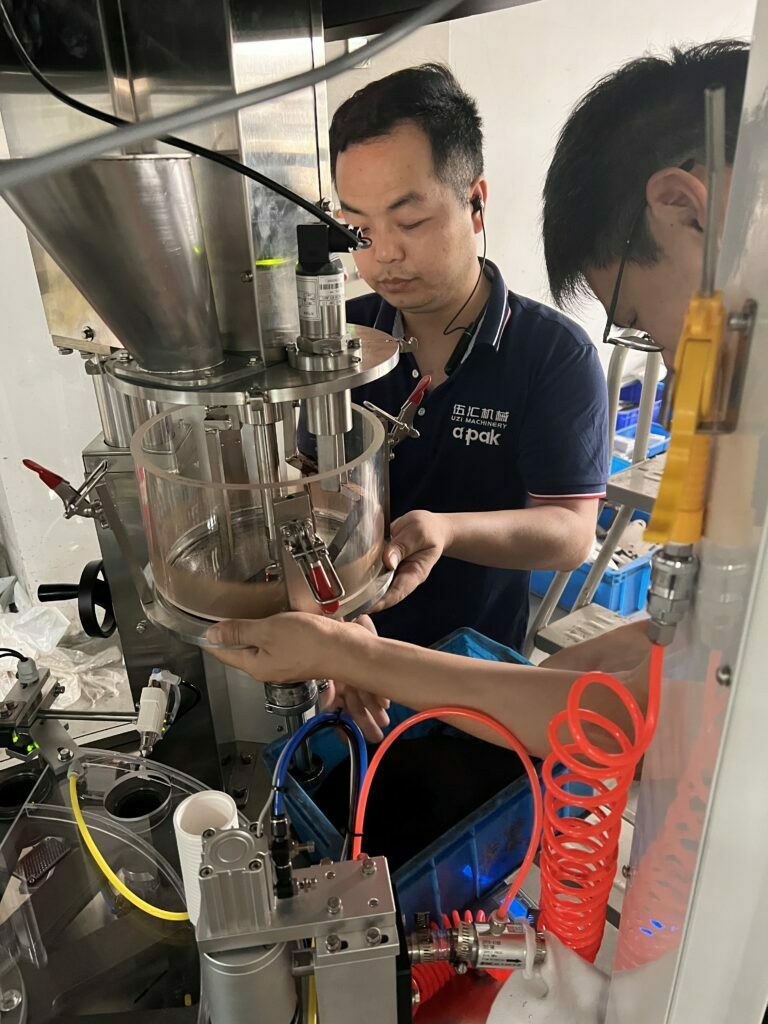

Shanghai AFPAK Co., Ltd., established in 2010, stands as a pioneering force in the global coffee packaging industry, headquartered in Shanghai, China. Specializing in advanced machinery for coffee capsule filling, sealing, and packaging, AFPAK has revolutionized how coffee producers worldwide handle their products. From Nespresso-compatible capsules to K-Cup and Dolce Gusto systems, the company’s innovative solutions cater to a diverse array of needs, ensuring precision, efficiency, and reliability in every operation.
